UnionMesher

(Source code, svg)

class otmeshing.UnionMesher

Union of disjoint meshes.

Methods

CompressMesh(mesh)	Deduplicate mesh vertices.
build(coll)	Generate a mesh from the union of disjoint meshes.
getClassName()	Accessor to the object's name.
getName()	Accessor to the object's name.
hasName()	Test if the object is named.
setName(name)	Accessor to the object's name.

Examples

>>> import openturns as ot
>>> import otmeshing
>>> mesher = otmeshing.UnionMesher()
>>> dim = 2
>>> mesh1 = ot.IntervalMesher([1] * dim).build(ot.Interval(dim))
>>> mesh2 = ot.IntervalMesher([1] * dim).build(ot.Interval([2.0] * dim, [3.0] * dim))
>>> union = mesher.build([mesh1, mesh2])

__init__()

static CompressMesh(mesh)

Deduplicate mesh vertices.

A k-D tree radius search is used to filter out duplicate vertices.

Parameters:

meshopenturns.Mesh

A mesh.

Returns:

compressedMeshopenturns.Mesh

The crompressed mesh.

build(coll)

Generate a mesh from the union of disjoint meshes.

Parameters:

collsequence of openturns.Mesh

Non-overlapping meshes.

Returns:

meshopenturns.Mesh

The mesh of the union.

getClassName()

Accessor to the object’s name.

Returns:

class_namestr

The object class name (object.__class__.__name__).

getName()

Accessor to the object’s name.

Returns:

namestr

The name of the object.

hasName()

Test if the object is named.

Returns:

hasNamebool

True if the name is not empty.

setName(name)

Accessor to the object’s name.

Parameters:

namestr

The name of the object.

Examples using the class

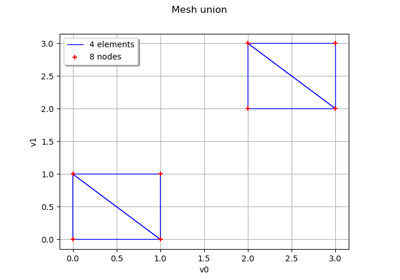

Union meshing

Union meshing
