Mesh distance

In this example we will see how to use the mesh domain adapter to compute distance from a point to a Mesh We will also how it can be combined with LevelSetMesher to compute the intersection of meshes

import matplotlib
import openturns as ot
import openturns.viewer as otv
import otmeshing as otm

Create a mesh from an interval

dim = 2
mesh = ot.IntervalMesher([1] * dim).build(ot.Interval([-0.7] * dim, [0.7] * dim))

Create the domain adapter from the mesh

domain = otm.MeshDomain2(mesh)

Sample points and compute distances from the mesh a negative distance means the point is inside the mesh

n = 200
points = ot.Normal(dim).getSample(n)
distances = domain.computeDistance(points)
print(f"min={distances.getMin()} max={distances.getMax()}")

min=[-0.641941] max=[2.56369]

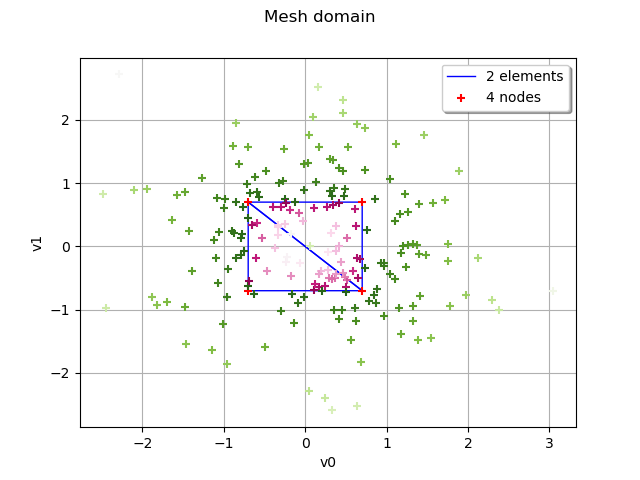

Plot the points according to the distance to the mesh

dmax = distances.getMax()[0]
cmap = matplotlib.colormaps["PiYG"]
graph = mesh.draw()
for i in range(n):
    di = distances[i, 0]
    if di < 0.0:
        rgba = cmap(-di)
    else:
        rgba = cmap(1.0 - 0.5 * (di) / dmax)
    cloud = ot.Cloud([points[i]])
    color = ot.Drawable.ConvertFromRGBA(*rgba)
    cloud.setColor(color)
    graph.add(cloud)

graph.setTitle("Mesh domain")
view = otv.View(graph)

We will see that we can use the mesh distance to compute an intersection of meshes

def levelSetIntersectionMeshing(mesh1, mesh2, n=20):
    """Compute an intersection using mesh distance."""
    dim = mesh1.getDimension()
    min1 = mesh1.getVertices().getMin()
    min2 = mesh2.getVertices().getMin()
    max1 = mesh1.getVertices().getMax()
    max2 = mesh2.getVertices().getMax()
    minB = list(map(min, min1, min2))
    maxB = list(map(max, max1, max2))
    bbox = ot.Interval(minB, maxB)
    domain1 = otm.MeshDomain2(mesh1)
    domain2 = otm.MeshDomain2(mesh2)

    def _exec(X):
        d1 = domain1.computeDistance(X)
        d2 = domain2.computeDistance(X)
        return [max(d1, d2)]

    f = ot.PythonFunction(dim, 1, _exec)
    levelSet = ot.LevelSet(f, ot.LessOrEqual(), 0.0)
    mesher = ot.LevelSetMesher([n] * dim)
    mesh = mesher.build(levelSet, bbox, False)
    return mesh

Define two intersecting square meshes

dim = 2
mesh1 = ot.IntervalMesher([1] * dim).build(ot.Interval([0.0] * dim, [3.0] * dim))
mesh2 = ot.IntervalMesher([1] * dim).build(ot.Interval([1.0] * dim, [4.0] * dim))

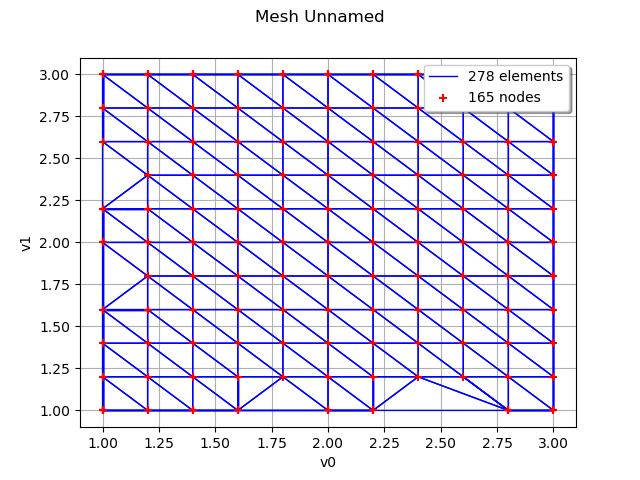

Compute the intersection: it should be the interval [1,3]^2

inter = levelSetIntersectionMeshing(mesh1, mesh2)
graph = inter.draw()
view = otv.View(graph)

otv.View.ShowAll()
